Product Line
Rotary
- Rotary Actuators

  Compact

  A032

  Torque: 9 in-lb*
  Shaft: 1/4" or 3/8"
  Diameter
  *80psi

  AL75

  Torque: 7-14 in-lb*
  Shaft: 1/4"
  Diameter
  *80 psi

  A752

  Torque: 35 in-lb*
  Shaft: 3/8"
  Diameter
  *80 psi

  Single Rack Tie-Rod

  A01

  Torque: 6 in-lb*
  Shaft: 3/16" or 1/4"
  Diameter
  *80psi

  A1

  Torque: 12 in-lb*
  Shaft: 1/4" or 3/8"
  Diameter
  *80 psi

  A2

  Torque: 39 in-lb*
  Shaft: 1/2"
  Diameter
  *80 psi

  A3

  Torque: 119 in-lb*
  Shaft: 3/4"
  Diameter
  *80 psi

  A4

  Torque: 277 in-lb*
  Shaft: 1" or 1 1/8"
  Diameter
  *80 psi

  Dual Rack Tie-Rod

  A12

  Torque: 24 in-lb*
  Shaft: 1/4" or 3/8"
  Diameter
  *80psi

  A22

  Torque: 78 in-lb*
  Shaft: 1/2"
  Diameter
  *80 psi

  A32

  Torque: 238 in-lb*
  Shaft: 3/4"
  Diameter
  *80 psi

  A42

  Torque: 545 in-lb*
  Shaft: 1" or 1 1/8"
  Diameter
  *80 psi
Multi-Position
- Multi Position

  Three Position Actuators

  A032

  Torque: 6 in-lb*
  Shaft: 1/4" or 3/8"
  Diameter
  *80psi

  A12

  Torque: 12 in-lb
  Shaft: 3/8"
  Diameter
  *80 psi

  A22

  Torque: 39 in-lb*
  Shaft: 1/2"
  Diameter
  *80 psi

  A32

  Torque: 119 in-lb*
  Shaft: 3/4"
  Diameter
  *80 psi

  A42

  Torque: 277 in-lb*
  Shaft 1 or 1 1/8"
  Diameter
  *80 psi

  4 or 5 Position Actuators

  Four or Five Position

  Torque: 12-277 in-lb*
  Shaft: 3/8"-1 1/8"
  Diameter
  *80psi
Indexing
- Indexing Actuators

  Single Rack

  X1

  Torque: 9 in-lb*
  Shaft: 3/8*
  Diameter
  *60psi

  X2

  Torque: 29 in-lb*
  Shaft: 1/2"
  Diameter
  *60psi

  X3

  Torque: 89 in-lb*
  Shaft: 3/4"
  Diameter
  *60psi

  X4

  Torque: 208 in-lb*
  Shaft: 1"
  Diameter
  *60psi

  Dual Rack

  X12

  Torque: 18 in-lb*
  Shaft: 3/8"
  Diameter
  *60psi

  X22

  Torque: 59 in-lb*
  Shaft: 1/2"
  Diameter
  *60psi

  X32

  Torque: 179 in-lb*
  Shaft: 3/4"
  Diameter
  *60psi

  X42

  Torque: 415 in-lb*
  Shaft: 1"
  Diameter
  *60psi
Stepping
- Stepping Actuators

  Single Rack

  S1

  Torque: 12 in-lb*
  Shaft: 3/8"
  Diameter
  *80psi

  S2

  Torque: 39 in-lb*
  Shaft: 1/2"
  Diameter
  *80psi

  S3

  Torque: 119 in-lb*
  Shaft: 3/4"
  Diameter
  *80psi

  S4

  Torque: 277 in-lb*
  Shaft: 1"
  Diameter
  *80psi
Pick & Place
- Pick & Place Actuators

  Single Rack

  PA01

  Torque: 6 in-lb*
  Shaft: 3/8"
  Diameter
  *80psi

  PA2

  Torque: 34 in-lb*
  Shaft: 1"
  Diameter
  *80psi

  PA3

  Torque: 113 in-lb*
  Shaft: 1"
  Diameter
  *80psi

  Dual Rack

  PA22

  Torque: 73 in-lb*
  Shaft: 1"
  Diameter
  *80psi

  PA32

  Torque: 223 in-lb*
  Shaft: 1"
  Diameter
  *80psi
Nitpicker
- Nitpicker Actuators

  Single Rack

  PX2

  Torque: 39 in-lb*
  Shaft: 1"
  Diameter
  *80psi

  Dual Rack

  PX22

  Torque: 68 in-lb*
  Shaft: 1"
  Diameter
  *75psi
Shaft Mounting Adapters
Swing Clamps

headerrotary

Single Rack Tie Rod Rotary Actuators

Rotomation's single rack tie rod actuators are designed for general applications where reliability and durability are important and where a small amount of lash is tolerable. Specific characteristics and features of each series:

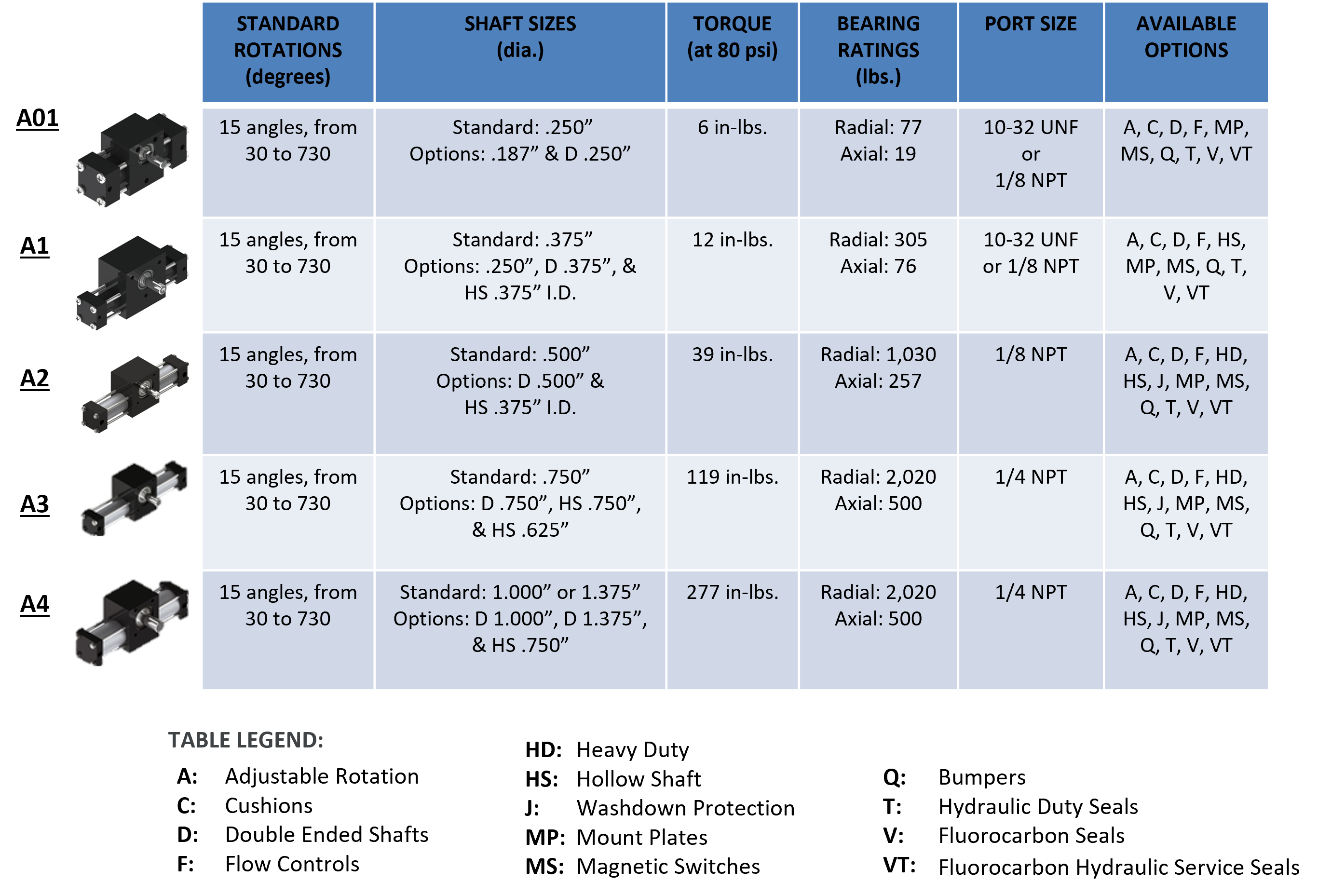

singleracktierodcomparison2

Notes:
1. All information in this table is for comparison purposes only. For ratings, please
visit specific product pages.
2. Not all options can be combined.

^*1Special rotations up to 730° available.
^*2Special rotations up to 1,080° available.
^*3Single or double ended.
^*4Reed switches also available.
