Product Line
-
Rotary Rotary ActuatorsCompactA032*80psi
Torque: 9 in-lb*
Shaft: 1/4" or 3/8"
DiameterAL75*80psi
Torque: 7-14 in-lb*
Shaft: 1/4"
DiameterA752*80psi
Torque: 35 in-lb*
Shaft: 3/8"
DiameterSingle Rack Tie-RodA01*80psi
Torque: 6 in-lb*
Shaft: 3/16" or 1/4"
DiameterA1*80psi
Torque: 12 in-lb*
Shaft: 1/4" or 3/8"
DiameterA2*80psi
Torque: 39 in-lb*
Shaft: 1/2"
DiameterA3*80psi
Torque: 119 in-lb*
Shaft: 3/4"
DiameterA4*80psi
Torque: 277 in-lb*
Shaft: 1" or 1 1/8"
DiameterDual Rack Tie-RodA12*80psi
Torque: 24 in-lb*
Shaft: 1/4" or 3/8"
DiameterA22*80psi
Torque: 78 in-lb*
Shaft: 1/2"
DiameterA32*80psi
Torque: 238 in-lb*
Shaft: 3/4"
DiameterA42*80psi
Torque: 545 in-lb*
Shaft: 1" or 1 1/8"
Diameter -
Multi-Position Multi PositionThree Position ActuatorsA032*80psi
Torque: 6 in-lb*
Shaft: 1/4" or 3/8"
DiameterA12*80psi
Torque: 12 in-lb
Shaft: 3/8"
DiameterA22*80psi
Torque: 39 in-lb*
Shaft: 1/2"
DiameterA32*80psi
Torque: 119 in-lb*
Shaft: 3/4"
DiameterA42*80psi
Torque: 277 in-lb*
Shaft 1 or 1 1/8"
Diameter4 or 5 Position ActuatorsFour or Five Position*80psi
Torque: 12-277 in-lb*
Shaft: 3/8"-1 1/8"
Diameter -
Indexing Indexing ActuatorsSingle RackX1*60psi
Torque: 9 in-lb*
Shaft: 3/8*
DiameterX2*60psi
Torque: 29 in-lb*
Shaft: 1/2"
DiameterX3*60psi
Torque: 89 in-lb*
Shaft: 3/4"
DiameterX4*60psi
Torque: 208 in-lb*
Shaft: 1"
Diameter -
Stepping -
Multi-Motion -
Nitpicker Nitpicker ActuatorsSingle RackPX2*80psi
Torque: 39 in-lb*
Shaft: 1"
Diameter -
Shaft Mounting Adapters

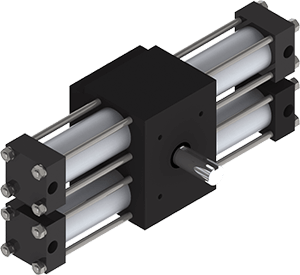

X32 Indexing Actuator
Overview
This unique device indexes with high accuracy and no accumulating error. Floating pistons and a precision ground rack riding in replaceable sintered bronze bearings assure millions of reliable duty cycles. It is ideal for use in medium index tables, conveyors, or to consistently position parts evenly for multiple simultaneous operations.
Specifications:
- Bore Size = 1 3/8″
- Standard Rotations = From 12 (30 steps/rev.) to 360 (1 step/rev.)
- Shaft Sizes = Standard: .750″ dia., Options: D .750″ dia.
- Torque at 60 max psi = 179 in-lbs.
- Ball Bearing Ratings = Radial: 1,030 lbs., Axial: 257 lbs.
- Port Size = 1/4 NPT
- Available Options:
- Cushions
- Flow Controls
- Heavy Duty (Aluminum Cylinders, Option A or Steel Cylinders, Option K)
- Washdown Protection
- Mount Plates
- Magnetic Switches Installed & Tested Prior To Shipping
- Bumpers
- Hydraulic Service Seals
- Fluorocarbon Seals
- Fluorocarbon Hydraulic Service Seals
See the X3 Indexing Actuator Part Number page for detailed configuration and option information.
For increased torque, consider the X4 Indexing Actuator.
Use our online configurator for the X32 indexer.
