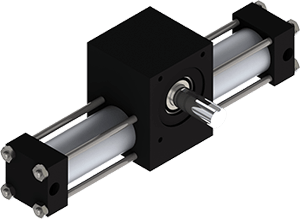

S3 Stepping Actuator

The S3 stepping actuator is ideal for use in medium index tables with shot pins, conveyors, or as drives for roll feeders. The S3 provides unidirectional rotation in increments but unlike our X3 indexing actuator, it does not have positive stopping capability. The load will coast to a stop unless acted on by an external force. Unlike competitive products with add-on clutch housings, the S3 has a fully integrated clutch-bearing assembly for solid support of the load. For increased torque output, consider our S4 stepping actuator. Possible to add independently-controlled linear motion, like PA3 pick & place actuator but with stepping rotary section.

Rotomation S3 Stepping Actuator will provide you with an incremental drive that will rotate in one direction and coast to a stop as the inertial load decelerates



Features:
  • Extremely configurable to fit your specific needs
  • Rugged, reliable, simple operation with just a four-way valve
  • Various rotation angles to choose from, up to 730 degrees or special
  • Various port and needle valve positions available
  • Optional magnetic switches in various configurations
  • Optional rotation adjusters, bumpers, flow controls, cushions*1

*1Cushion on drive requires shaft/load to have some drag to properly affect load. Cushion on reset will NOT affect load.


Do not hesitate to contact us if you need help generating a valid part number or have questions about this product. Click on the button below to send us your question(s); or call us at (386) 676-6377 if you wish to speak to an engineer directly. We will be glad to assist!
