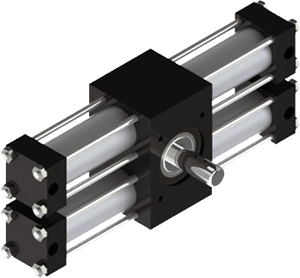

A32 3-Position Rotary Actuator

a32 3 position rotary
A32 3-Position Dual Rack Rotary Actuator

Overview

With internal stops for an intermediate position, our A32 three-position actuator has overall dimensions that are similar to those of its two-position counterpart, the A32 rotary actuator. Output torque is that of a single rack unit but it can rotate to any of its 3 positions in any direction, in any sequence by simply activating the proper directional control valve.

Specifications:

  • 3-Position Rotary Actuator
  • Bore Size = 1 3/8"
  • Standard Rotations = From 30 to 730 degrees total
  • Shaft Sizes = Standard: .750" dia., Options: D .750" dia., HS .750" I.D., & HS .625" I.D.
  • Torque at 80 psi = 119 in-lbs.
  • Ball Bearing Ratings = Radial: 2,020 lbs., Axial: 500 lbs.
  • Port Size = 1/4 NPT
  • Available Options:
    • Adjustable Rotation
    • Cushions
    • Double Ended Shafts
    • Flow Controls
    • Washdown Protection
    • Heavy Duty (Alunimum Cylinders, Option A or Steel Cylinders, Option K)
    • Hollow Shaft
    • Mount Plates
    • Magnetic Switches Installed & Tested Prior To Shipping
    • Bumpers
    • Hydraulic Service Seals
    • Fluorocarbon Seals
    • Fluorocarbon Hydraulic Service Seals

See the A32 3-Position Rotary Actuator Part Number page for detailed configuration and option information.

But if you're looking for precise unidirectional sequential steps, consider our X3 Indexing Actuator.

For increased torque output, consider the A42 3-Position Actuator.

Compare All 3-Position Rotary Actuators
